Beschreibung

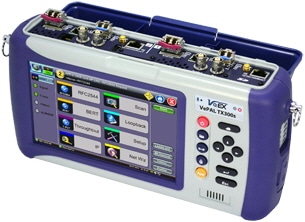

TX300S — Portable Converged Networks Test Set Single und/oder Dual Port. Mit optionalem OTDR Modul.
VeEX® VePAL TX300S is a multi-service test solution for OTN, SDH, SONET, PDH, DSn and Mobile Backhaul networks. Equipped with SyncE, 1588v2 PTP, and CPRI/OBSAI test options, the unit offers unprecedented synchronization turn-up and troubleshooting test functions for mobile operators migrating to 4G LTE.
The Fiber Optics Test Option adds a full range of Optical test features that support OTDR, OPM, Light Source, and VFL, making the TX300S a complete network test solution from physical layer up to higher layers of multi-service performance testing.
Platform Highlights
- All-in-One hardware platform reduces CAPEX
- The VeExpress™ ecosystem allows users to Buy, Rent, Lease-to-own and share test feature licenses
- Optimized for field engineers installing and maintaining OTN, SDH/SONET, and Carrier Ethernet networks
- Flexible software platform allows for multiple test applications running simultaneously
- Available in Single or Dual-port versions
- Test set connectivity via Ethernet, Wi-Fi, Bluetooth®, or Data Card
- Interchangeable Li-ion battery pack extends field testing time
- Asset Management via VeExpress
SyncE / IEEE 1588v2
- Fully integrated solution for synchronized packet networks
- Supports IEEE 1588v2/PTP and SyncE/ITU-T G.8261 standards
- Master Clock and Slave clock emulation
- IEEE 1588v2/PTP protocol monitoring and decoding
- Clock recovery from SyncE or PTP and output to E1 or DS1 port
OTN / SDH / PDH
- Optical SDH/SONET testing for STM-0/1/4/16/64 and OC1/3/12/48/192
- OTN testing for ODU0, ODU Flex, OTU1, OTU2, OTU1e/OTU2e
- PDH testing at E1, E2, E3, E4, DS1, DS3
- Jitter/Wander Analysis (E1, E3, DS1, DS3 and STM-1o, OC-3)
Ethernet / Fibre Channel
- 10GE LAN/WAN XFP, 100Base-FX/1000Base-X SFP, 10/100/1000Base-T RJ45 ports
- 1G/2G/4G/8G/10G Fibre Channel support for Storage Area Networks
- RFC2544 Throughput, latency, frame loss and back to back tests
- V-SAM test suite compliant with ITU-T Y.1564 standard
- Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB support
- IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, and MPLS-TP OAM support
CPRI / OBSAI Testing
- CPRI: supports all rates from 614.4 Mbps to 9.8304 Gbps
- OBSAI: supports all rates from 768 Mbps to 6.144 Gbps
- Unframed, Layer 1 Framed and Layer 2 BER testing with PRBS stress patterns
- Latency measurements
Fazit: Der VeEX TX300S ist eine vielseitige All-in-One-Testlösung für konvergente Netzwerke — von OTN/SDH über Carrier Ethernet bis hin zu CPRI/OBSAI und OTDR. Das VeExpress-Lizenzmodell reduziert Investitionskosten deutlich.
